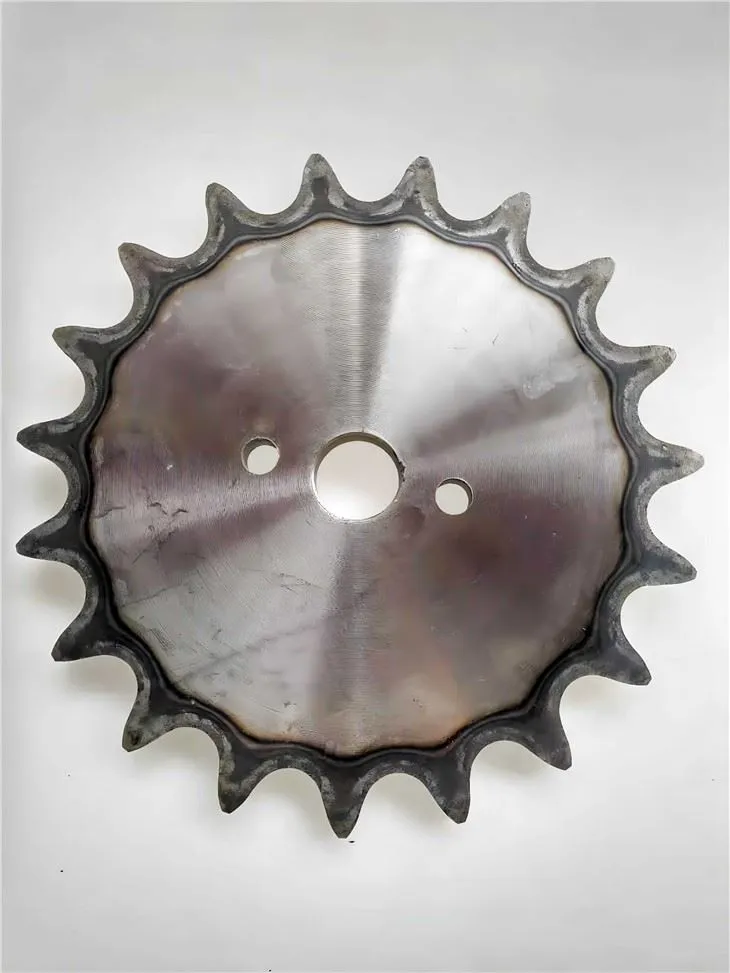

OEM ANSI A Typ Kedjehjul

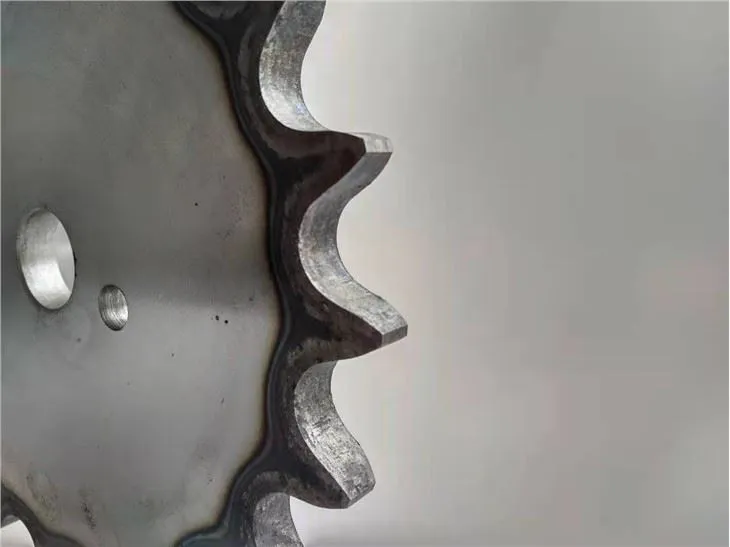

GZG OEM ANSI sprocket 100-19T which is sort of A type sprocket.The biggest difference between it and regular sprocket is the thickness. Regular thickness of ANSI 100-19T sprocket should be 17.58mm, but thickness of GZG OEM ANSI Sprocket 100-19T is 12mm. HRC could meet client's presuit after tooth quenching heat treatment. And two locking holes could help to output torque. We warmly welcome clients contact us and ask for more details about this OEM sprocket.

Skicka förfrågan

chatta nu

GZG OEM ANSI kedjehjul 100-19Twhich is sort of A type sprocket.The biggest difference between it and regular sprocket is the thickness. Regular thickness of ANSI 100-19T sprocket should be 17.58mm, but thickness of GZG OEM ANSI Sprocket 100-19T is 12mm. HRC could meet client's presuit after tooth quenching heat treatment. And two locking holes could help to output torque.

Drawing of OEM ANSI A Type Sprocket 100-19T

Sprocket GZG 100-19T

Mått för referens

Tänder	Pitch	Roller Φ	Tandtjocklek	Ytterdiameter	P.C.D	Håldiameter 1	Håldiameter 2	Diameter mellan två låshål	Vikt (kg	Material
19	31.75	19.05	12	212	192.913	25.7	10.7	60	2.49	C45
